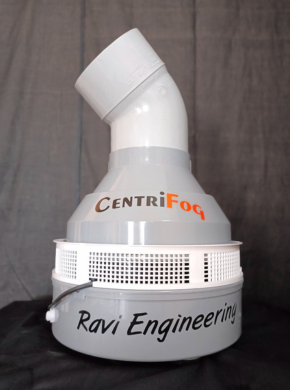

Centrifugal Adiabatic Humidifier

The Centrifugal Adiabatic Humidifier by Ravi Engineering is a highly efficient and self-contained humidification system, specifically engineered for environments where only single-phase power and municipal tap water are available, eliminating the need for low TDS water sources. This system is ideal for applications requiring precise humidity control with low energy consumption and minimal maintenance.

Working Principle

The system operates on the principle of centrifugal nebulization, where water is converted into fine mist and expelled through a self-generated airflow, ensuring uniform humidity distribution. The unit features a self-contained water tub at its base, designed for rapid evaporation within short operating cycles.

Construction & Components The humidifier con

The humidifier consists of the following key components:

High-Speed Single-Phase Motor – Ensures efficient operation in areas with limited power availability.

Suction Cone & Fan Assembly – Facilitates air intake and distribution for effective mist dispersion.

Stainless Steel Fins & Rotating Disk – Precisely engineered to atomize water into micro-droplets using centrifugal force.

Water Pan & Syphon System – Draws water into the system through capillary action, eliminating the need for external pumps.

Operating Mechanism

Water Intake – The system utilizes a syphon effect to draw water from the water pan located at the base of the unit.

Centrifugal Atomization – As the high-speed motor rotates, water is expelled outward due to centrifugal force, creating a fine mist.

Airflow Generation – A fan assembly pulls air through an air inlet ring, strategically positioned at the base of the humidifier.

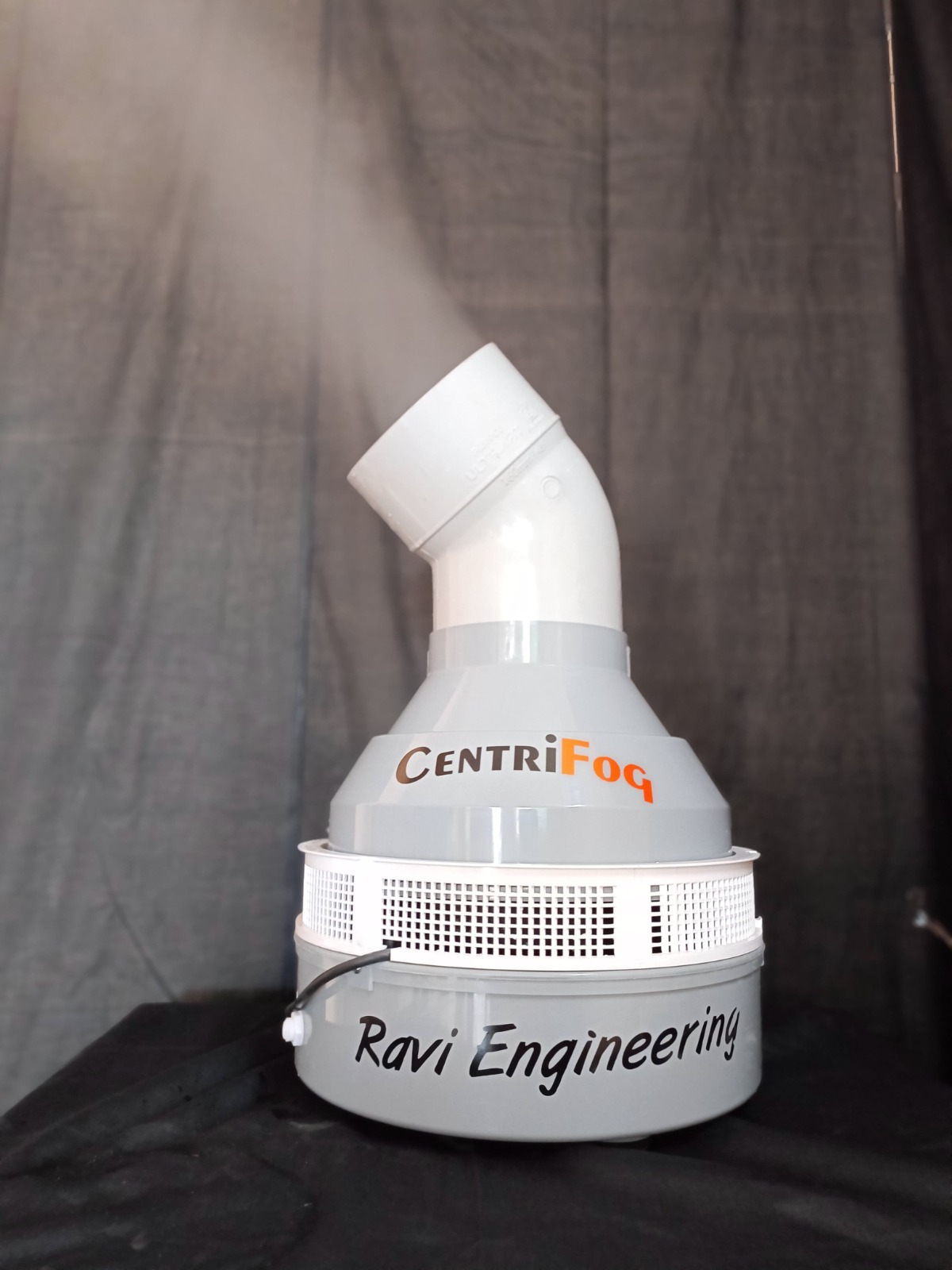

Mist Distribution – The fan propels the mist-laden air through the top discharge outlet, ensuring efficient and even humidification.

Key Advantages

Ideal for Rural Areas

efficiently with single-phase power and standard tap water.

No High-Pressure Pumps Required

Works on natural siphon action and centrifugal force.

Low Maintenance & Limescale Resistance

Less susceptible to hard water deposits compared to traditional nozzle-based systems.

Flexible Mounting Options

Can be wall-mounted or suspended from the ceiling for optimal airflow distribution.

Energy-Efficient & Cost-Effective

Minimal power consumption while maintaining high-performance humidity control.

Applications

Cold Storage & Food Preservation – Maintains ideal humidity levels for fresh produce.
Mushroom Farming & Agriculture – Creates a controlled environment for high-yield cultivation.
Textile & Weaving Industry – Prevents static buildup and enhances fabric quality.
Printing & Paper Processing – Reduces paper curling and enhances print quality.
Pharmaceutical & Cleanrooms – Ensures precise humidity levels for manufacturing processes.
